Radial Insert Ball Bearing SB210 2RS - Shaft: 50 mm

The bearing insert SB210-2RS can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for high radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	50
Outside (mm):	90
Width (mm):	20
Tolerance for inside (mm):	0/0,021
Tolerance for outside (mm):	-0,015/0
Tolerance for width (mm):	-0,12/0
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M8
Extended Inner Ring:	one side
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Magnetic:	yes
Product weight:	0,6430 kg

Item number: SB210-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.28

pcs

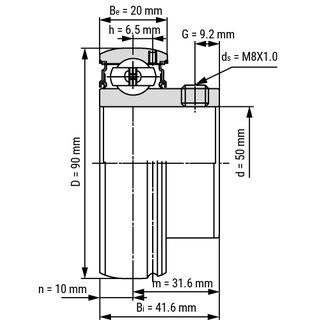

Technical Scribble
