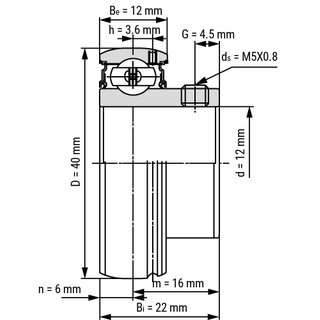

Radial Insert Ball Bearing SB201 RST - Shaft: 12 mm

The bearing insert SB201 RST can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for high radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	12
Outside (mm):	40
Width (mm):	12
Tolerance for inside (mm):	0,015/0
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M5
Extended Inner Ring:	one side
Seal:	RST
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1000 kg

Item number: SB201-RST

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 3.56

pcs
