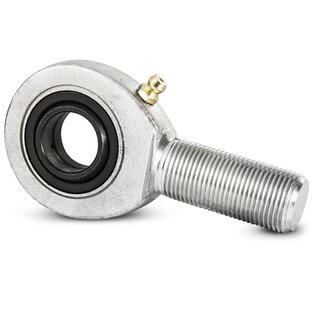

Rod End - Requiring Maintenance SA35ES open 35x82x25 mm

The rod end SA35ES without seals requires maintenance. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. It has an external thread. The main dimensions correspond to DIN 648 — series ES (DIN = German industrial norm).

Technical Data

Inside (mm):	35
Outside (mm):	82
Width (mm):	25
Tolerance for inside (mm):	0/-0,012
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	1,4000 kg

Item number: SA35ES

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 29.07

pcs

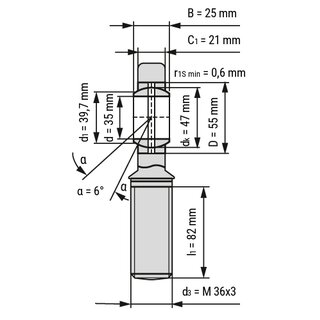

Technical Scribble
