Rod End - Maintenance Free SA20C open 20x53x16 mm

The maintenance-free rod end SA20C without seals is particularly suitable for loads where low friction is needed. It has a sliding contact surface combination hard chrome/PTFE and an external thread . The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	20
Outside (mm):	53
Width (mm):	16
Tolerance for inside (mm):	0/-0,01
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Maintenance Free
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	PTFE/chrome steel
Product weight:	0,3100 kg

Item number: SA20C

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 14.92

pcs

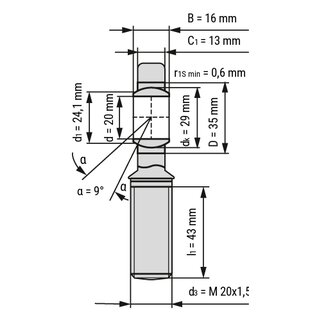

Technical Scribble

Technical Data

Inside (mm):	20
Outside (mm):	53
Width (mm):	16
Tolerance for inside (mm):	0/-0,01
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Maintenance Free
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	PTFE/chrome steel
Product weight:	0,3100 kg

Technical Scribble
