Radial Insert Ball Bearing SA207 2RS - Shaft: 35 mm

The bearing insert SA207 2RS can be easily attached to the shaft with the aid of the eccentric ring or inserted in a housing. It is suitable for radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	35
Outside (mm):	72
Width (mm):	17
Tolerance for inside (mm):	0,021/0
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Eccentric Collar
Grub Screw:	M8
Extended Inner Ring:	one side
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4700 kg

Item number: SA207-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.87

pcs

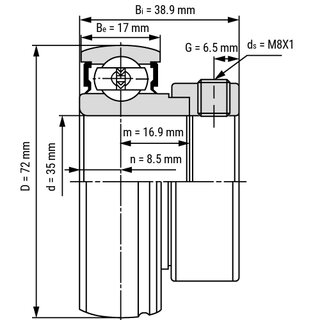

Technical Scribble
