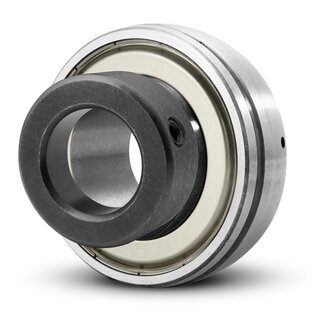

Radial Insert Ball Bearing SA201 RST - Shaft: 12 mm

The bearing insert SA201 RST can be easily attached to the shaft with the aid of the eccentric ring or inserted in a housing. It is suitable for radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	12
Outside (mm):	40
Width (mm):	12
Tolerance for inside (mm):	0,015/0
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Eccentric Collar
Grub Screw:	M6
Extended Inner Ring:	one side
Seal:	RST
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1300 kg

Item number: SA201-RST

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 5.45

pcs

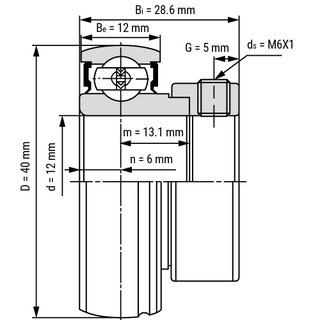

Technical Scribble
