Rod End - Maintenance Free SA17C open 17x46x14 mm

The maintenance-free rod end SA17C without seals is particularly suitable for loads where low friction is needed. It has a sliding contact surface combination hard chrome/PTFE and an external thread . The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	17
Outside (mm):	46
Width (mm):	14
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Maintenance Free
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	PTFE/chrome steel
Product weight:	0,1900 kg

Item number: SA17C

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 12.67

pcs

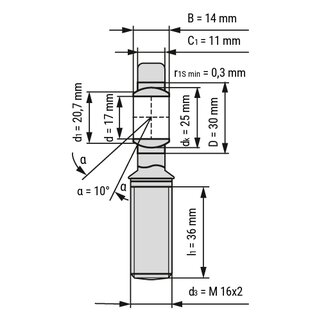

Technical Scribble

Technical Data

Inside (mm):	17
Outside (mm):	46
Width (mm):	14
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Maintenance Free
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	PTFE/chrome steel
Product weight:	0,1900 kg

Technical Scribble
