Rod End - Requiring Maintenance SA15ES open 15x40x12 mm

The rod end SA15ES without seals requires maintenance. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. It has an external thread. The main dimensions correspond to DIN 648 — series ES (DIN = German industrial norm).

Technical Data

Inside (mm):	15
Outside (mm):	40
Width (mm):	12
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,1400 kg

Item number: SA15ES

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 7.10

pcs

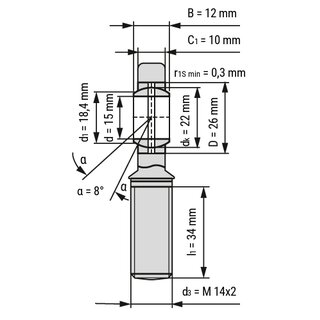

Technical Scribble
