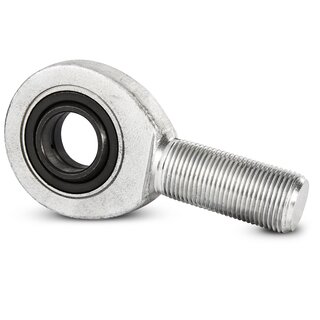

Rod End - Requiring Maintenance SA12E open 12x34x10 mm

The rod end SA12E without seals requires maintenance. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. It has an external thread. The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	12
Outside (mm):	34
Width (mm):	10
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0860 kg

Item number: SA12E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.75

pcs

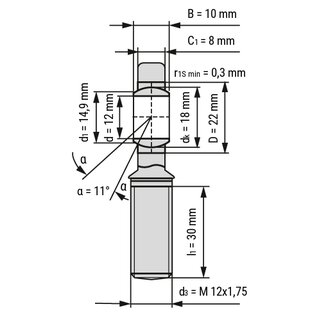

Technical Scribble

Technical Data

Inside (mm):	12
Outside (mm):	34
Width (mm):	10
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0860 kg

Technical Scribble
