Rod End - Requiring Maintenance SA10E open 10x29x9 mm

The rod end SA10E without seals requires maintenance. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. It has an external thread. The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	10
Outside (mm):	29
Width (mm):	9
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0510 kg

Item number: SA10E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.10

pcs

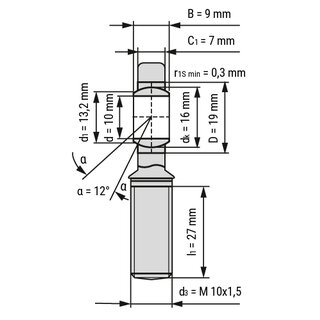

Technical Scribble

Technical Data

Inside (mm):	10
Outside (mm):	29
Width (mm):	9
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0510 kg
