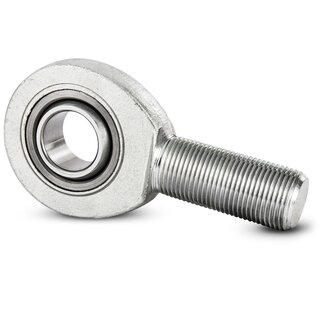

Rod End - Maintenance Free SA10C open 10x29x9 mm

The maintenance-free rod end SA10C without seals is particularly suitable for loads where low friction is needed. It has a sliding contact surface combination hard chrome/PTFE and an external thread . The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	10
Outside (mm):	29
Width (mm):	9
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Maintenance Free
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	PTFE/chrome steel
Product weight:	0,0510 kg

Item number: SA10C

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.07

pcs

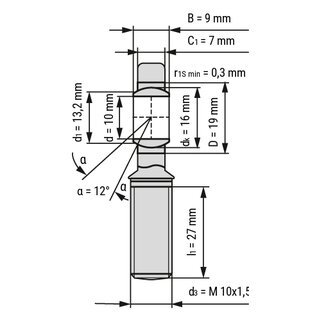

Technical Scribble
