Technical Scribble

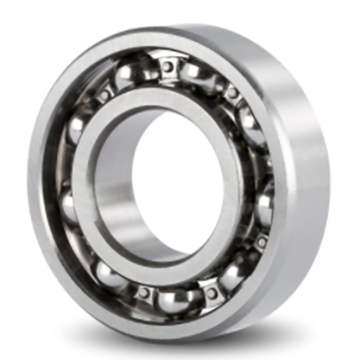

S316-RMS32 4"x8.5"x1.75"
Technical Data
| Product Number | S316-RMS32 |
| System of Measurement | Inch |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Bore Dia | 4" |
| Bore Dia Tolerance | -0.0008" to 0" |
| Outer Dia | 8.5" |
| Outer Dia Tolerance | -0.0012" to 0" |
| Width | 1.75" |
| Width Tolerance | -0.008" to 0" |
| Ring Material | 316 Stainless Steel |
| Ball Material | 316 Stainless Steel |
| Cage Material | 316 Stainless Steel |
| Dynamic Radial Load | 15647 lbf |
| Static Radial Load | 12589 lbf |
| Max Speed (X1000 rpm) | 2.15 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -86 to 230 °F |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.00059" to 0.00161" |
| RoHS | Compliant |
| Weight | 3380 g |
| technology url | /technology/ball-bearings/ |
Item number: S316-RMS32
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
price:Inquiry
pcs
