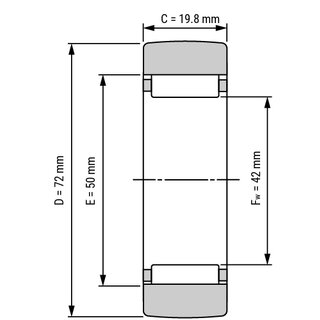

Yoke Type Track Roller RSTO35 42x72x19.8 mm

The yoke type track roller RSTO35 can be mounted directly on the shaft as it has no inner ring. It is therefore suitable for receiving radial loads in limited spatial conditions. Due to the profiled outer surface of the outer ring, it can compensate minor misalignments and skews.

Technical Data

Inside (mm):	42
Outside (mm):	72
Width (mm):	19.8
Tolerance for inside (mm):	0,041/0,025
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Axial Guidance:	without axial guidance, without inner ring
Magnetic:	yes
Product weight:	0,3750 kg

Item number: RSTO35

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
