Deep Groove Ball Bearing Inch RMS9 2RS 28.575 x 71.438 x 20.64 mm

Loadable, stable and with good spinning characteristics. The deep groove ball bearing RMS09-2RS in inch-size is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications.

Technical Data

Inside (mm):	28.575
Outside (mm):	71.438
Width (mm):	20.64
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,3500 kg

Item number: RMS09-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 7.92

pcs

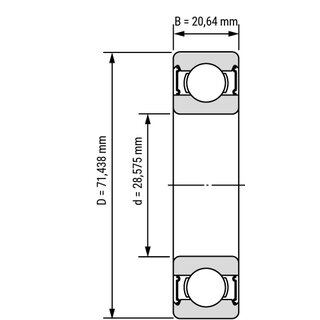

Technical Scribble
