Deep Groove Ball Bearing Inch RMS5 ZZ / 2Z 15.875 x 46.038 x 15.88 mm

Loadable, stable and with good spinning characteristics. The deep groove ball bearing RMS05-ZZ / 2Z in inch-size is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications.

Technical Data

Inside (mm):	15.875
Outside (mm):	46.038
Width (mm):	15.88
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1170 kg

Item number: RMS05-ZZ

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 3.56

pcs

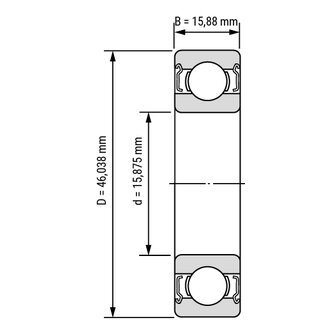

Technical Scribble

Technical Data

Inside (mm):	15.875
Outside (mm):	46.038
Width (mm):	15.88
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1170 kg

Technical Scribble

Deep Groove Ball Bearing Inch RMS5 ZZ / 2Z 15.875 x 46.038 x 15.88 mm

Technical Data

Technical Scribble

Technical Data
