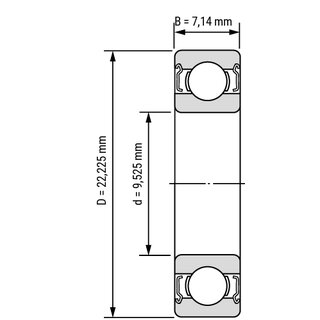

Miniature Deep Groove Ball Bearing Inch R6 ZZ / 2Z 9.525 x 22.225 x 7.14 mm

For use in special conditions. The miniature ball bearing R6-ZZ / 2Z in inch-size is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds.

Technical Data

Inside (mm):	9.525
Outside (mm):	22.225
Width (mm):	7.14
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0080 kg

Item number: R6-ZZ

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 1.09

pcs
