Deep Groove Ball Bearing Inch R20 W9.525 open oiled 31.75 x 57.15 x 9.525 mm

Lightweight, stable and with good spinning characteristics. The deep groove ball bearing R20-W9.525 in inch-size is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications.

Technical Data

Inside (mm):	31.75
Outside (mm):	57.15
Width (mm):	9.525
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,1000 kg

Item number: R20-W9.525-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.64

pcs

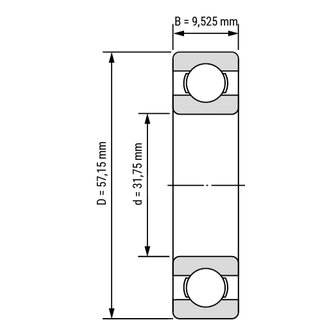

Technical Scribble

Technical Data

Inside (mm):	31.75
Outside (mm):	57.15
Width (mm):	9.525
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,1000 kg
