- R2-5-W2.779-OIL
Technical Scribble

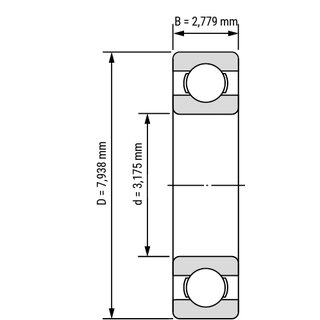

Miniature Deep Groove Ball Bearing Inch R2 5 W2.779 open oiled 3.175 x 7.938 x 2.779 mm
For use in special conditions. The miniature ball bearing R2-5-W2.779 in inch-size is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds.
Technical Data
| Inside (mm): | 3.175 |
| Outside (mm): | 7.938 |
| Width (mm): | 2.779 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Product weight: | 0,0004 kg |
Item number: R2-5-W2.779-OIL
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 1.29
pcs
Technical Scribble
Technical Data
| Inside (mm): | 3.175 |
| Outside (mm): | 7.938 |
| Width (mm): | 2.779 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Product weight: | 0,0004 kg |
