Deep Groove Ball Bearing Inch R16 W9.525 open oiled 25.4 x 50.8 x 9.525 mm

Lightweight, stable and with good spinning characteristics. The deep groove ball bearing R16-W9.525 in inch-size is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications.

Technical Data

Inside (mm):	25.4
Outside (mm):	50.8
Width (mm):	9.525
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0780 kg

Item number: R16-W9.525-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 5.24

pcs

Technical Scribble

Technical Data

Inside (mm):	25.4
Outside (mm):	50.8
Width (mm):	9.525
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0780 kg

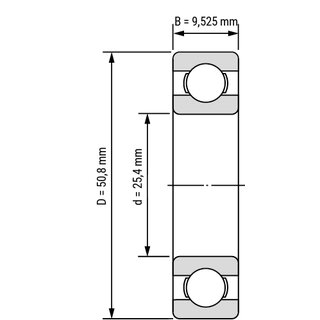

Technical Scribble
