Deep Groove Ball Bearing Inch R12 W7.937 open oiled 19.05 x 41.275 x 7.937 mm

Lightweight, stable and with good spinning characteristics. The deep groove ball bearing R12-W7.937 in inch-size is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications.

Technical Data

Inside (mm):	19.05
Outside (mm):	41.275
Width (mm):	7.937
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0450 kg

Item number: R12-W7.937-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.03

pcs

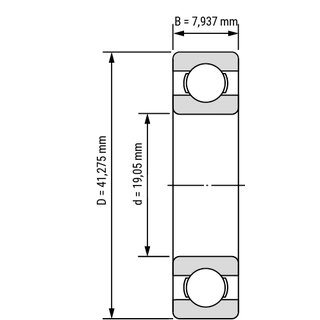

Technical Scribble
