Stud Type Track Roller PWKR52 2RS 2HS 52x20x66 mm

Stable even in curves. The stud type track roller PWKR52-2RS can withstand very high loads while rolling on a mating track. It is based on a full complement cylindrical roller bearing and suitable for very high speeds. Due to the profiled outer surface of the outer ring, it can compensate for axial loads from minor misalignments and skews.

Technical Data

Outside Cones (mm):	20
Outside Roller (mm):	52
Width (mm):	66
Tolerance for Outside Cones (mm):	0/-0,021
Tolerance for Outside Roller (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4500 kg

Item number: PWKR52-2RS-2HS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 57.60

pcs

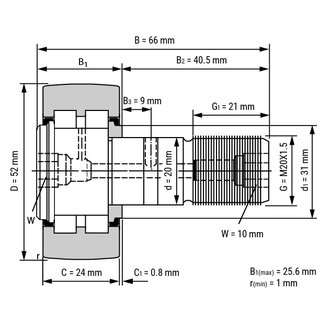

Technical Scribble

Technical Data

Outside Cones (mm):	20
Outside Roller (mm):	52
Width (mm):	66
Tolerance for Outside Cones (mm):	0/-0,021
Tolerance for Outside Roller (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4500 kg
