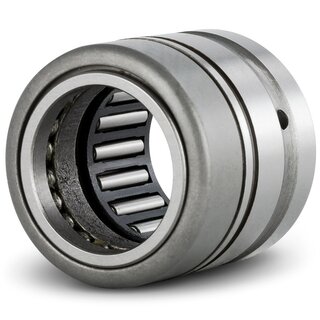

Needle Roller / Axial Ball Bearings NX7 Z TN 7x14x18 mm
The combined needle roller bearing NX7-Z-TN combines the benefits of a radial needle roller bearing with those of a full complement axial deep groove ball bearing and carries high radial loads and axial loads in one direction. It has no inner ring and requires therefore a particularly small radial installation space.
Technical Data
| Inside (mm): | 7 |
| Outside (mm): | 14 |
| Width (mm): | 18 |
| Tolerance for inside (mm): | 0,047/0,025 |
| Tolerance for outside (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,25 |
| Seal: | Z |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Plastic |
| Magnetic: | yes |
| Product weight: | 0,0140 kg |
Item number: NX7-Z-TN
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 11.80
pcs
