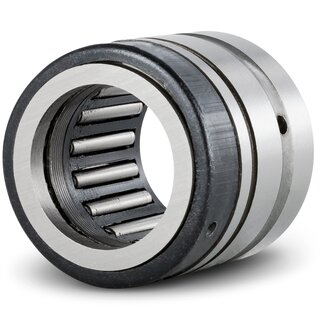

Needle Roller / Axial Ball Bearings NX10 10x19x18 mm

The combined needle roller bearing NX10 combines the benefits of a radial needle roller bearing with those of a full complement axial deep groove ball bearing and carries high radial loads and axial loads in one direction. It has no inner ring and requires therefore a particularly small radial installation space.

Technical Data

Inside (mm):	10
Outside (mm):	19
Width (mm):	18
Tolerance for inside (mm):	0,047/0,025
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,25
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0210 kg

Item number: NX10

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 10.50

pcs
