Yoke Type Track Roller NUTR45100 45x100x32 mm

The full complement roller set yoke type track roller NUTR45100 can support very high radial and axial loads due to the double row design. Due to the profiled outer surface of the outer ring, it can compensate for axial loads from minor misalignments and skews.

Technical Data

Inside (mm):	45
Outside (mm):	100
Width (mm):	32
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Seal:	two-sided labyrinth seal
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Axial Guidance:	with axial guidance
Magnetic:	yes
Product weight:	1,3960 kg

Item number: NUTR45100

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 45.33

pcs

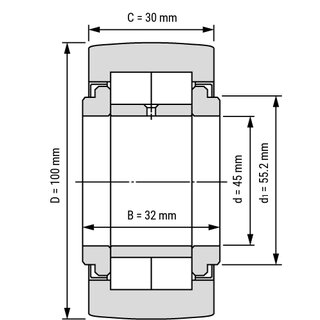

Technical Scribble
