Cylindrical Roller Bearing NUP305 E 25x62x17 mm

Due to the cylindrical rollers, the cylindrical roller bearing NUP305-E has large contact surfaces between rolling elements and bearing rings. It is suitable for very high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	25
Outside (mm):	62
Width (mm):	17
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,2900 kg

Item number: NUP305-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 9.72

pcs

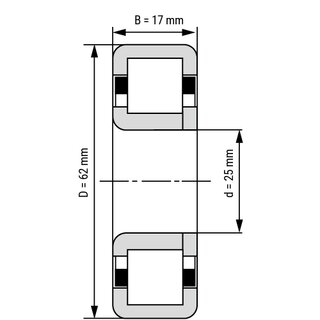

Technical Scribble

Technical Data

Inside (mm):	25
Outside (mm):	62
Width (mm):	17
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,2900 kg

Technical Scribble

Cylindrical Roller Bearing NUP305 E 25x62x17 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
