Cylindrical Roller Bearing NUP304 E 20x52x15 mm

Due to the cylindrical rollers, the cylindrical roller bearing NUP304-E has large contact surfaces between rolling elements and bearing rings. It is suitable for very high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	20
Outside (mm):	52
Width (mm):	15
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1700 kg

Item number: NUP304-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 9.52

pcs

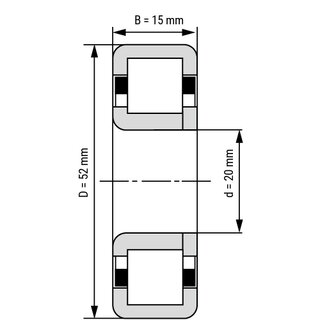

Technical Scribble
