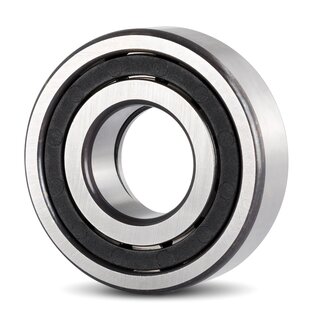

Cylindrical Roller Bearing NUP209 E TN 45x85x19 mm

Due to the cylindrical rollers, the cylindrical roller bearing NUP209-E-TN has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	45
Outside (mm):	85
Width (mm):	19
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4900 kg

Item number: NUP209-E-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 26.07

pcs

Technical Scribble

Technical Data

Inside (mm):	45
Outside (mm):	85
Width (mm):	19
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4900 kg

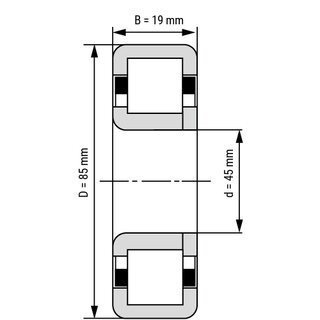

Technical Scribble

Cylindrical Roller Bearing NUP209 E TN 45x85x19 mm

Technical Data

Technical Scribble

Technical Data
