Stud Type Track Roller NUKRE40 2HS 40x22x58 mm

Stable even in curves. The stud type track roller NUKRE40 can withstand very high loads while rolling on a mating track. It is based on a full complement cylindrical roller bearing, suitable for very high speeds and can compensate for misalignment. It is fastened with eccentric ring.

Technical Data

Outside Cones (mm):	22
Outside Roller (mm):	40
Width (mm):	58
Tolerance for Outside Cones (mm):	0/-0,021
Tolerance for Outside Roller (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Seal:	two-sided labyrinth seal
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,2580 kg

Item number: NUKRE40-LA-2HS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 17.63

pcs

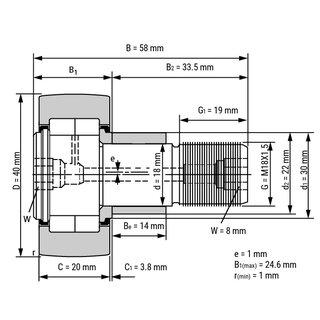

Technical Scribble

Technical Data

Outside Cones (mm):	22
Outside Roller (mm):	40
Width (mm):	58
Tolerance for Outside Cones (mm):	0/-0,021
Tolerance for Outside Roller (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Seal:	two-sided labyrinth seal
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,2580 kg
