Stud Type Track Roller NUKRE35 2HS 35x20x52 mm

Stable even in curves. The stud type track roller NUKRE35 can withstand very high loads while rolling on a mating track. It is based on a full complement cylindrical roller bearing, suitable for very high speeds and can compensate for misalignment. It is fastened with eccentric ring.

Technical Data

Outside Cones (mm):	20
Outside Roller (mm):	35
Width (mm):	52
Tolerance for Outside Cones (mm):	0/-0,021
Tolerance for Outside Roller (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Seal:	two-sided labyrinth seal
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,2140 kg

Item number: NUKRE35-LA-2HS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 16.12

pcs

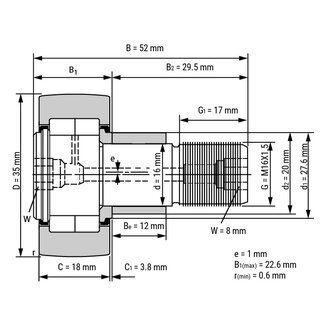

Technical Scribble

Technical Data

Outside Cones (mm):	20
Outside Roller (mm):	35
Width (mm):	52
Tolerance for Outside Cones (mm):	0/-0,021
Tolerance for Outside Roller (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Seal:	two-sided labyrinth seal
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,2140 kg

Technical Scribble

Stud Type Track Roller NUKRE35 2HS 35x20x52 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
