Cylindrical Roller Bearing NU218 E 90x160x30 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU218-E has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

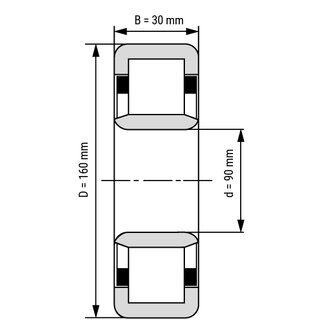

Technical Data

Inside (mm):	90
Outside (mm):	160
Width (mm):	30
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,2
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	2,4500 kg

Item number: NU218-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 83.29

pcs

Technical Scribble

Technical Data

Inside (mm):	90
Outside (mm):	160
Width (mm):	30
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,2
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	2,4500 kg
