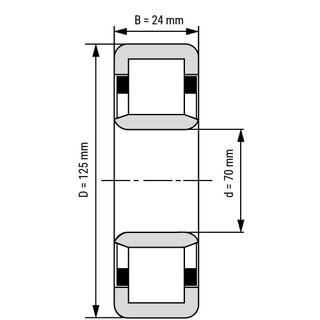

Cylindrical Roller Bearing NU214 E 70x125x24 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU214-E has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	70
Outside (mm):	125
Width (mm):	24
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,1590 kg

Item number: NU214-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 46.59

pcs
