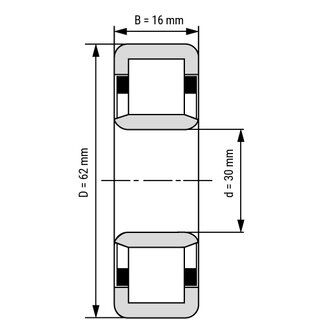

Cylindrical Roller Bearing NU206 E 30x62x16 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU206-E has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	30
Outside (mm):	62
Width (mm):	16
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1910 kg

Item number: NU206-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.05

pcs
