Cylindrical Roller Bearing NU204 E 20x47x14 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU204-E has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	20
Outside (mm):	47
Width (mm):	14
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1200 kg

Item number: NU204-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.65

pcs

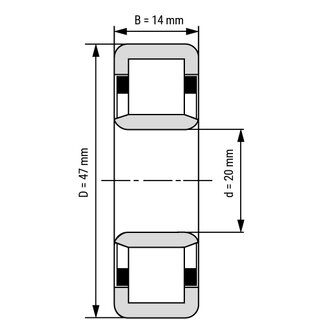

Technical Scribble
