Cylindrical Roller Bearing NU1010 E M 50x80x16 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU1010-E-M has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and very high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	50
Outside (mm):	80
Width (mm):	16
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,3050 kg

Item number: NU1010-E-M

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 84.74

pcs

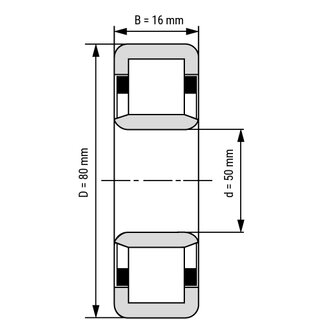

Technical Scribble
