Cylindrical Roller Bearing NU1007 E M 35x62x14 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU1007-E-M has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and very high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	35
Outside (mm):	62
Width (mm):	14
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1770 kg

Item number: NU1007-E-M

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 48.05

pcs

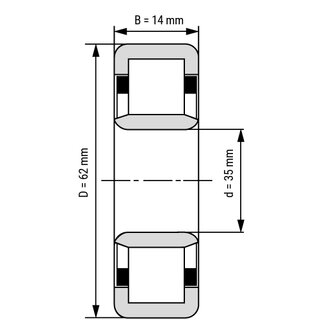

Technical Scribble

Technical Data

Inside (mm):	35
Outside (mm):	62
Width (mm):	14
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1770 kg

Technical Scribble

Cylindrical Roller Bearing NU1007 E M 35x62x14 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
