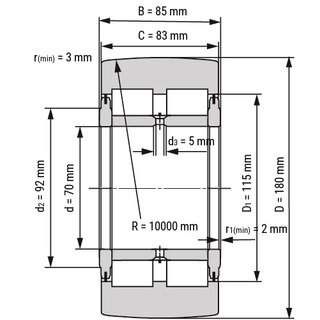

Yoke Type Track Roller NNTR70X180X85 2ZL 70x180x85 mm

The full complement roller set yoke type track roller NNTR70X180X85-2ZL can support very high radial loads and continious axial loads due two its double-row design. Due to the profiled outer surface of the outer ring, it can compensate for axial loads from minor misalignments and skews.

Technical Data

Inside (mm):	70
Outside (mm):	180
Width (mm):	85
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,15
Seal:	2ZL
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Axial Guidance:	with axial guidance, with inner ring
Magnetic:	yes
Product weight:	13,0000 kg

Item number: NNTR70X180X85-2ZL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 520.00
