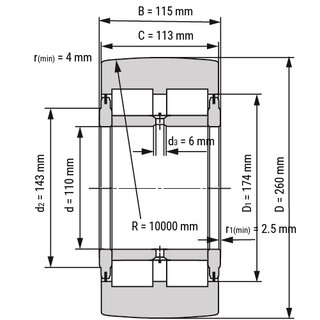

Yoke Type Track Roller NNTR110X260X115 2ZL 110x260x115 mm

The full complement roller set yoke type track roller NNTR110X260X115-2ZL can support very high radial loads and continious axial loads due two its double-row design. Due to the profiled outer surface of the outer ring, it can compensate for axial loads from minor misalignments and skews.

Technical Data

Inside (mm):	110
Outside (mm):	260
Width (mm):	115
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,035
Tolerance for width (mm):	0/-0,2
Seal:	2ZL
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Axial Guidance:	with axial guidance, with inner ring
Magnetic:	yes
Product weight:	35,6000 kg

Item number: NNTR110X260X115-2ZL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 1416.00

pcs

Technical Scribble

Technical Data

Inside (mm):	110
Outside (mm):	260
Width (mm):	115
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,035
Tolerance for width (mm):	0/-0,2
Seal:	2ZL
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Axial Guidance:	with axial guidance, with inner ring
Magnetic:	yes
Product weight:	35,6000 kg
