High Precision Cylindrical Roller Bearing NN3009-AS-K-M-SP 45x75x23 mm

The high-precision cylindrical roller bearing NN3009-AS-K-M-SP meets the highest demands. It is both highly radial loadable and very precisely manufactured, making it suitable for applications with special requirements.

Technical Data

Inside (mm):	45
Outside (mm):	75
Width (mm):	23
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Bore:	tapered (K)
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 5 / P5
Magnetic:	yes
Product weight:	0,3900 kg

Item number: NN3009-AS-K-M-SP

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 96.13

pcs

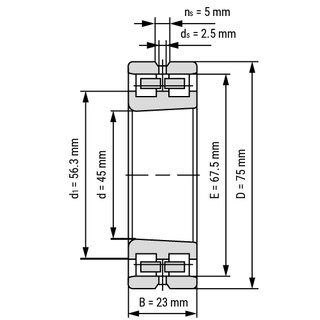

Technical Scribble

Technical Data

Inside (mm):	45
Outside (mm):	75
Width (mm):	23
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Bore:	tapered (K)
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 5 / P5
Magnetic:	yes
Product weight:	0,3900 kg
