Needle Roller Bearing without Inner Ring NK60/25 60x72x25 mm

The needle bearing NK60/25 has thin cylinders as rolling elements and can absorb high radial forces. Since it has no inner ring, it can be placed directly on the shaft and is suitable for a particularly space-saving installation.

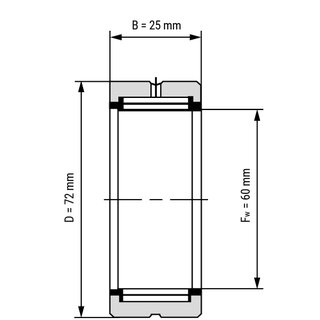

Technical Data

Inside (mm):	60
Outside (mm):	72
Width (mm):	25
Tolerance for inside (mm):	0,049/0,030
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,15
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1860 kg

Item number: NK60/25

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
