Needle Roller Bearing without Inner Ring NK5/10-TN 5x10x10 mm

The needle bearing NK5/10-TN has thin cylinders as rolling elements and can absorb high radial forces. Since it has no inner ring, it can be placed directly on the shaft and is suitable for a particularly space-saving installation.

Technical Data

Inside (mm):	5
Outside (mm):	10
Width (mm):	10
Tolerance for inside (mm):	0,018/0,010
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0030 kg

Item number: NK5/10-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.45

pcs

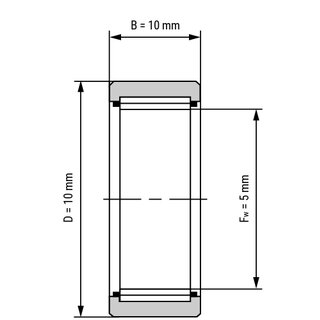

Technical Scribble

Technical Data

Inside (mm):	5
Outside (mm):	10
Width (mm):	10
Tolerance for inside (mm):	0,018/0,010
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0030 kg
