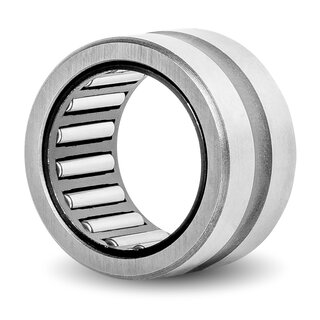

Needle Roller Bearing without Inner Ring NK15/16 15x23x16 mm

The needle bearing NK15/16 has thin cylinders as rolling elements and can absorb high radial forces. Since it has no inner ring, it can be placed directly on the shaft and is suitable for a particularly space-saving installation.

Technical Data

Inside (mm):	15
Outside (mm):	23
Width (mm):	16
Tolerance for inside (mm):	0,027/0,016
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0220 kg

Item number: NK15/16

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 3.50

pcs
