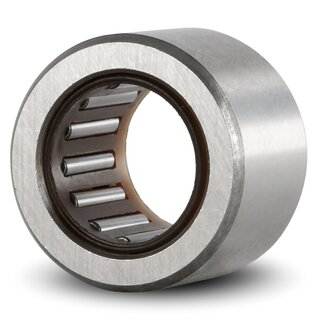

Needle Roller Bearing without Inner Ring NK10/12-TN 10x17x12 mm

The needle bearing NK10/12-TN has thin cylinders as rolling elements and can absorb high radial forces. Since it has no inner ring, it can be placed directly on the shaft and is suitable for a particularly space-saving installation.

Technical Data

Inside (mm):	10
Outside (mm):	17
Width (mm):	12
Tolerance for inside (mm):	0,022/0,013
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0100 kg

Item number: NK10/12-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 3.68

pcs

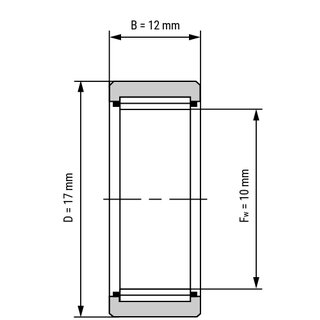

Technical Scribble
