Cylindrical Roller Bearing NJ315 E 75x160x37 mm

Due to the cylindrical rollers, the cylindrical roller bearing NJ315-E has large contact surfaces between rolling elements and bearing rings. It is suitable for very high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	75
Outside (mm):	160
Width (mm):	37
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,15
Design:	NJ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	3,4500 kg

Item number: NJ315-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 63.03

pcs

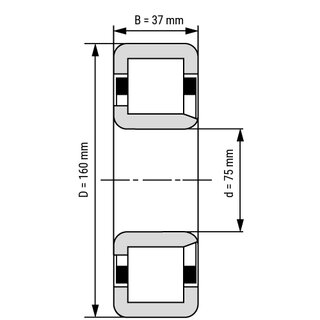

Technical Scribble
