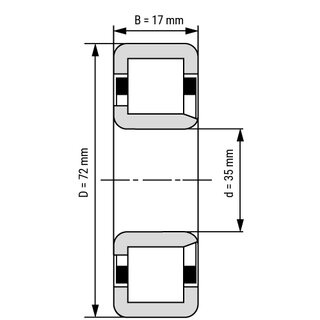

Cylindrical Roller Bearing NJ207 E 35x72x17 mm

Due to the cylindrical rollers, the cylindrical roller bearing NJ207-E has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	35
Outside (mm):	72
Width (mm):	17
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NJ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,3200 kg

Item number: NJ207-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 9.10

pcs

Technical Scribble

Technical Data

Inside (mm):	35
Outside (mm):	72
Width (mm):	17
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NJ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,3200 kg

Technical Scribble

Cylindrical Roller Bearing NJ207 E 35x72x17 mm

Technical Data

Technical Scribble

Technical Data
