Yoke Type Track Roller NATV30-PP 30x62x29 mm

The full complement roller set yoke type track roller NATV30-PP can support high radial and also axial loads. Due to the profiled outer surface of the outer ring, it can compensate for axial loads from minor misalignments and skews.

Technical Data

Inside (mm):	30
Outside (mm):	62
Width (mm):	29
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Seal:	PP
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Axial Guidance:	with axial guidance
Magnetic:	yes
Product weight:	0,4810 kg

Item number: NATV30-PP

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 21.12

pcs

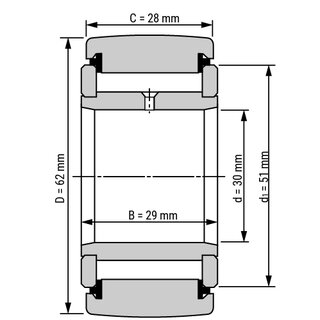

Technical Scribble
