Needle Roller Bearing with Inner Ring NA6911 open 55x80x45 mm

The needle bearing NA6911 has thin cylinders as rolling elements and can absorb very high radial forces with its massive bearing rings. It is suitable for space-saving installation. Main dimensions according to DIN 617.

Technical Data

Inside (mm):	55
Outside (mm):	80
Width (mm):	45
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,15
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	double row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,7800 kg

Item number: NA6911

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 35.60

pcs

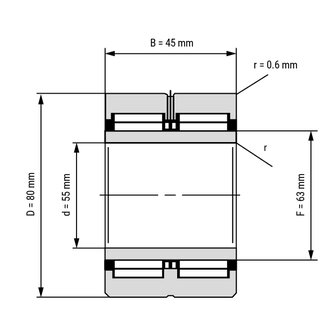

Technical Scribble

Technical Data

Inside (mm):	55
Outside (mm):	80
Width (mm):	45
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,15
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	double row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,7800 kg

Technical Scribble

Needle Roller Bearing with Inner Ring NA6911 open 55x80x45 mm

Technical Data

Technical Scribble

Technical Data
