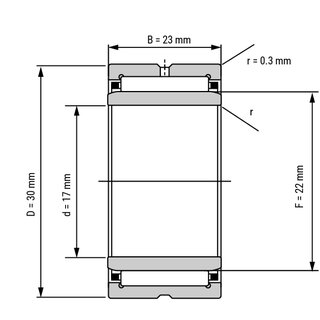

Needle Roller Bearing with Inner Ring NA6903 open 17x30x23 mm

The needle bearing NA6903 has thin cylinders as rolling elements and can absorb very high radial forces with its massive bearing rings. It is suitable for space-saving installation. Main dimensions according to DIN 617.

Technical Data

Inside (mm):	17
Outside (mm):	30
Width (mm):	23
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0720 kg

Item number: NA6903

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
