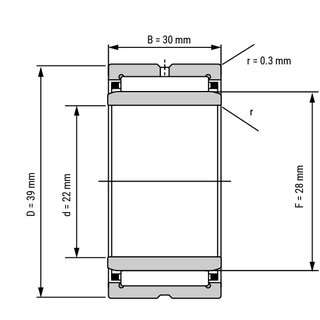

Needle Roller Bearing with Inner Ring NA69/22 open 22x39x30 mm

The needle bearing NA69/22 has thin cylinders as rolling elements and can absorb very high radial forces with its massive bearing rings. It is suitable for space-saving installation. Main dimensions according to DIN 617.

Technical Data

Inside (mm):	22
Outside (mm):	39
Width (mm):	30
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1500 kg

Item number: NA69/22

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 12.75

pcs
