Needle Roller Bearing with Inner Ring NA4904 open 20x37x17 mm

The needle bearing NA4904 has thin cylinders as rolling elements and can absorb high radial forces with its massive bearing rings. It is suitable for space-saving installation. Main dimensions according to DIN 617.

Technical Data

Inside (mm):	20
Outside (mm):	37
Width (mm):	17
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0800 kg

Item number: NA4904

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.55

pcs

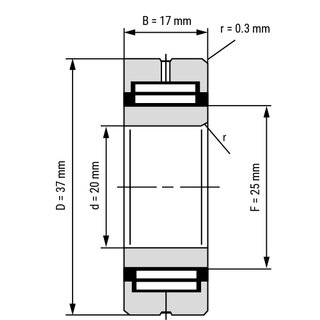

Technical Scribble
