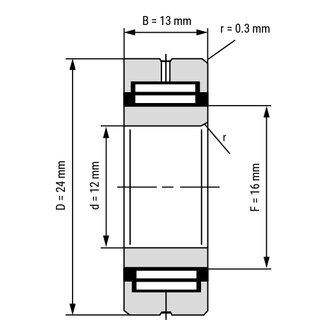

Needle Roller Bearing with Inner Ring NA4901 open 12x24x13 mm

The needle bearing NA4901 has thin cylinders as rolling elements and can absorb high radial forces with its massive bearing rings. It is suitable for space-saving installation. Main dimensions according to DIN 617.

Technical Data

Inside (mm):	12
Outside (mm):	24
Width (mm):	13
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0280 kg

Item number: NA4901

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
